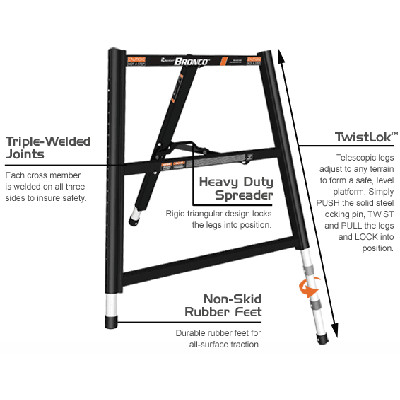

All-terrain 3-legged scaffold platform with 42" base spread and tapered tripod that is adjustable from 3-5' tall. Leg height adjusts separately every 1.5" allowing for use on uneven surfaces while maintaining a level platform. 6 00# load rating per pair. Weighs 19# and folds flat. Can be used on roof pitches up to 8/12; however fall protection may be required. 2 scaffolds required for use.
| Phase of Construction |

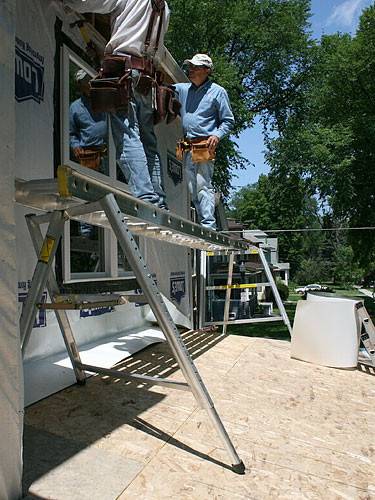

| Siding, window installation, roof sheathing, shingling, roof truss installation |
| Manufacturer’s Device Page |
| Reechcraft |
| Installation |
| Place on firm surface with solid footing that is capable of supporting 600# without slipping. Pull out rear leg and press spreader to lock the leg in position. Push down on locking pin, rotate bottom of leg, extend to desired, and engage locking pin. Horizontal line on rear leg diagram must be parallel to the ground for easy access and proper weight distribution. Place rated stage on two Broncos, stage must be level and supported by 12-18" on each side. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Failure to do so could result in serious injury or death. |
| Manual |
| Instruction Manual |
| Vendor |
| amazon.com, associatedscaffolding.com |
| Cost |
| $135-199 |
| Video |
| Video 1 |
