Purpose

4' long tie off strap provides fall protection system anchorage point for 1 individual. Reusable. Designed for trusses, rafters, floor joists, or wall headers.

Phase of Construction
Roof sheathing, truss installation, floor joist installation, window installation, siding
Manufacturer’s Device Page
Super Anchor
Installation
Wrap strap around structural member capable of supporting 5,000 lbs. Insert D-ring through web-loop and cinch tight. Attach lifeline to D-ring with locking snaphook or locking carabiner. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Structural member must be able to support 5000# force. Failure to do so could result in serious injury or death.
Manual
Instruction Manual
Vendor
Super Anchor,, ordexsupply.com
Cost
$15-25

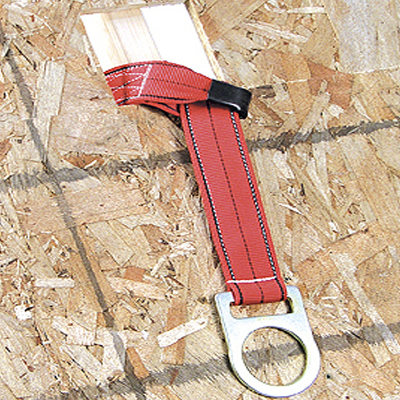

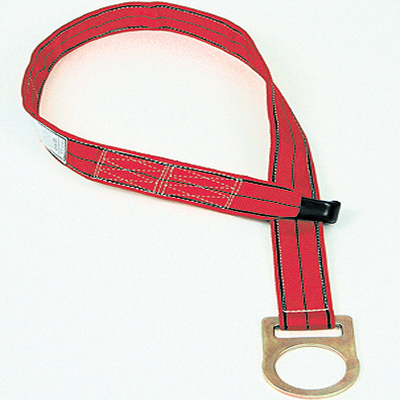

Max Quick Strap Anchor

Max Quick Strap Anchor
