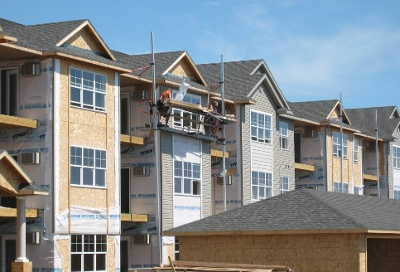

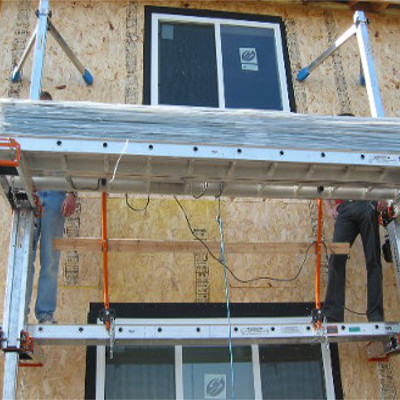

Pole-based scaffold system that is powered by a 1/2" drill. Platform systems < 24' tall can rest on side wall via V-brace; tie chain and wall anchor bracket must be used when >24' tall. Platform can be a single man basket (36" x 26"), railed work platform, or platform with work bench. Can accommodate platform lengths from 3' to 40' and the system will reach work heights of 100'. Can lift 650# at 25'/minute. Combines alloy aluminum and steel construction and an all-steel drive train used for access and leading edge fall protection.
Phase of Construction |
Siding, window installation, roof sheathing, shingling, roof truss installation |
Manufacturer’s Device Page |
Reechcraft |
Installation |
Must be installed by competent person following detailed installation procedures. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Failure to do so could result in serious injury or death. |
Manual |
Instruction Manual |
Vendor |
ebay.com; contact manufacturer |
Cost |
Varies depending on configuration |
Video |
Video 1 |
