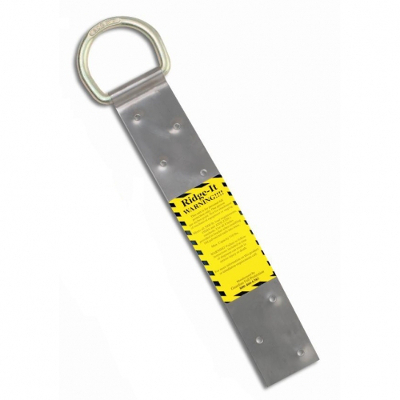

Provides fall arrest anchorage point for 1 individual. For permanent use on wood under tile roofing. Stainless steel, 18 in. long with 1 D-ring
Phase of Construction |
Shingling, roof sheathing, siding, maintenance |
Manufacturer’s Device Page |
Guardian Fall Protection, Qualcraft |
Installation |
Must be installed perpendicular to roof peak into structural member capable of withstanding 5000# load with D-ring facing away from peak. Slightly bend anchor at it's center and install all 12 nails (provided) into the fastener locations on the anchor. Ensure ridge cap/roof tiling are fully installed/reinstalled (for retrofit) according to manufacturer's instructions. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Structural member must be able to support 5000# force. Failure to do so could result in serious injury or death. |
Manual |
Instruction Manual |
Vendor |
Amazon, guardianfall.com, fallprotectionpros.com, geotechsupply.com, carsonsafety.com, sentrysafetysupply.com |
Cost |
$25-35 |
