Purpose

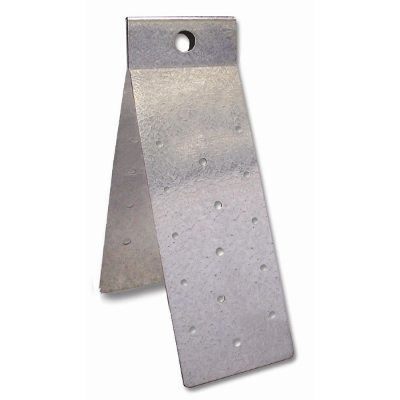

Disposable anchorage connector that fits any wood roof pitch. Provides anchorage for fall protection systems for 1 individual.

Phase of Construction
Roof shingling, siding installation
Manufacturer’s Device Page
Guardian, Qualcraft
Installation

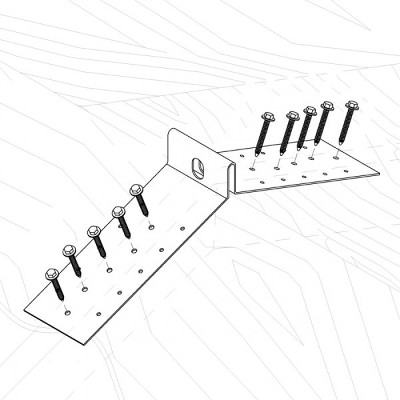

Adjust to fit roof pitch (flat to 12/12) and install into 3/4" CDX or better sheathing over truss. Use 10 2" screws in center holes or 20 16d 3/1/2" nails in side columns. All fasteners included. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Structural member must be able to support 5000# force. Failure to do so could result in serious injury or death.
Manual
Instruction Manual
Vendor
guardianfall.com, boltsnutsandtools.com, homedepot.com, fallprotectionpros.com, toolup.com
Cost
$14-20
