Purpose

Temporary use with fall arrest or restraint systems on wood rooftops/sheathed surfaces for 1 individual. Thick plated steel, and fits flat surfaces up to 12/12 roof pitch. Swivel D-ring allows movement over full work surface. Reusable.

Phase of Construction
Floor sheathing, roof sheathing, roof shingling, wall installation, window installation
Manufacturer’s Device Page
Guardian Fall Protection, Qualcraft
Installation
For fall arrest, install on existing structural member capable of supporting 5000# load with either screws or duplex nails. For fall arrest, structure must be able to support 1000# load. Fasteners are provided, but must use new fasteners with each application. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Structural member must be able to support 5000# force. Failure to do so could result in serious injury or death.
Manual
Instruction Manual
Vendor
Amazon, guardianfall.com, fallprotectionpros.com, shopwiki.com, bigrocksupply.com, simplifiedsafety.com
Cost
$28-49

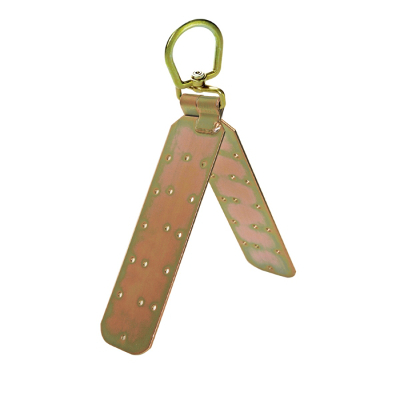

Temper Reusable Anchor with Swivel D-Ring

Temper Reusable Anchor with Swivel D-Ring
