Reusable 18,000# webbing strap that wraps around truss, top plate, rafter or joist to provide temporary anchorage for fall protection system for 1 individual. Available with D-ring on one end and loop on the other end or D-rings on both ends; comes in 3', 6' or custom lengths. Structural member must be able to support 5000# force. Use with shock absorbing lanyard is recommended.
Phase of Construction |
Roof sheathing, truss installation, floor joist installation, window installation, siding |
Manufacturer’s Device Page |
Super Anchor |
Installation |

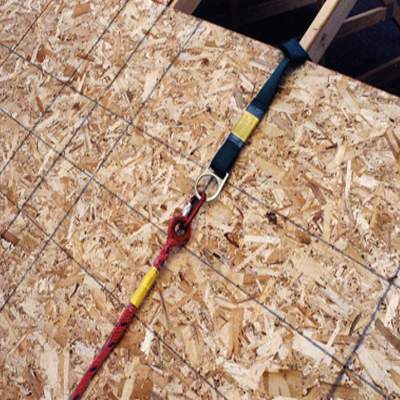

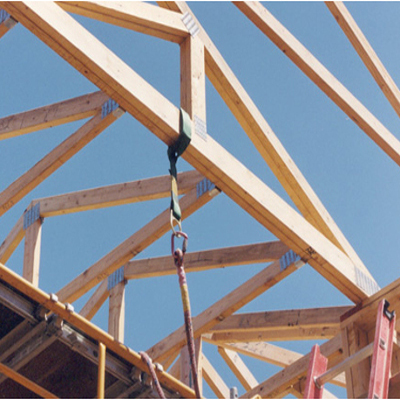

Strap is wrapped around supporting member and D-ring end is inserted through loop or large D-ring. Since strap can move along member it is fastened to, it must be blocked into place with wood members; when using on top chord sheathing must be in place with 3" opening for webbing. Use with shock absorbing lanyard is recommended. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Structural member must be able to support 5000# force. Failure to do so could result in serious injury or death. |
Manual |
Instruction Manual |
Vendor |
Super Anchor, Amazon, Big Rock Supply, Peak supply company |
Cost |
$22-40 |
