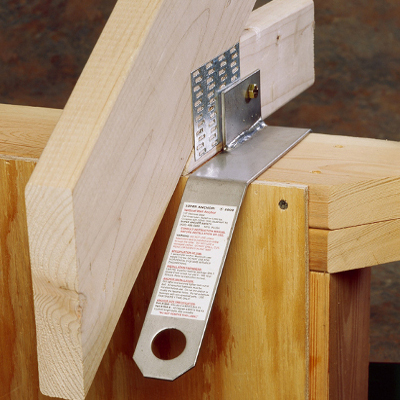

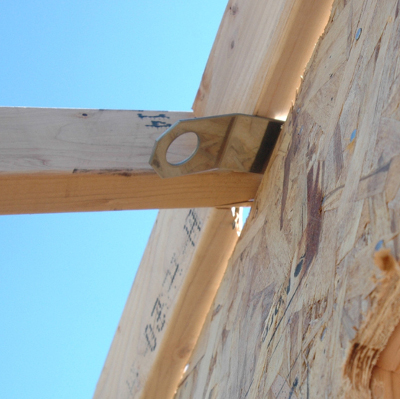

Anchor extends over the top plate of walls (capable of withstanding 5000# forces) to provide permanent or temporary anchorage fall protection for 1 individual. Two sizes available for roof pitches greater and less than 30 degrees.
Phase of Construction |
Siding, window installation, maintenance |
Manufacturer’s Device Page |
Super Anchor |
Installation |

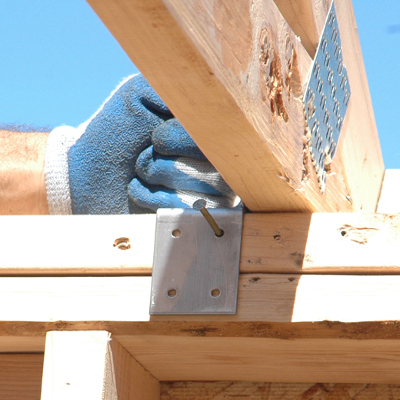

Anchor is attached to inside of top plate with 4 sinkers and to adjacent truss, rafter or joist with bolt and locking nut. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Structural member must be able to support 5000# force. Failure to do so could result in serious injury or death. |
Manual |
Instruction Manual |
Vendor |
Super Anchor, Amazon, Fall protection pros, Peak Supply Company, Toolup fallprotectionpros.com |
Cost |
$33-47 |
