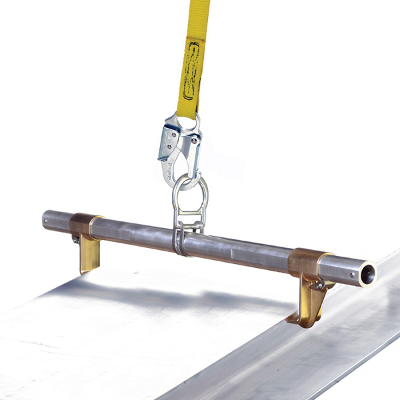

Adjustable aluminum beam that provides anchor point for individual personal fall arrest/restraint onto beams 14-30" wide with 2-2.5" thick flange. Has dual adjustment feature that makes it easier to adjust to ideal position. Can be used overhead or at foot level (must use with big boss extended free fall lanyard).
| Phase of Construction |
| Floor joist installation, floor sheathing |
| Manufacturer’s Device Page |
| Guardian Fall Protection |
| Installation |
| Ensure I or H beam meet flange thickness and width specified in manual. Position beam perpendicular to beam and adjust to fit beam using toggles. Must fit snugly and lock flush around beam flange. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Structural member must be able to support 5000# force. Failure to do so could result in serious injury or death. |
| Manual |
| Instruction Manual |
| Vendor |
| fallprotectionpros.com, all-liftsystems.com |
| Cost |
| $286-329 |
