Purpose

11 gauge steel moveable anchor for open framing (top chords and rafters) that are partially sheathed and capable of withstanding intended fall protection load. Available for 2x4, 2x6, 2x8 top chords and 2x10 and 2x12 rafters. Can be used inverted or upside down. Provides anchorage point for fall protection system for 1 individual. Rated for OSHA 5,000 pounds.

Phase of Construction
Roof truss installation, floor joist installation, roof sheathing, floor sheathing
Manufacturer’s Device Page
Super Anchor
Installation
Attaches to top chord or rafter using detent locking pin; 18" 2x6 board must be inserted over 2x4 top chord to secure anchor. In addition to locking pin, 16d duplex nails must be inserted on each leg side to secure; also must install sheathing or blocking on side sloping down to prevent movement. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Structural member must be able to support 5000# force. Failure to do so could result in serious injury or death.
Manual
Instruction Manual
Vendor
Super Anchor, amazon.com, peaksupplycompany.com, fallprotectionsolutionsllc.com, ordexsupply.com
Cost
$58-78

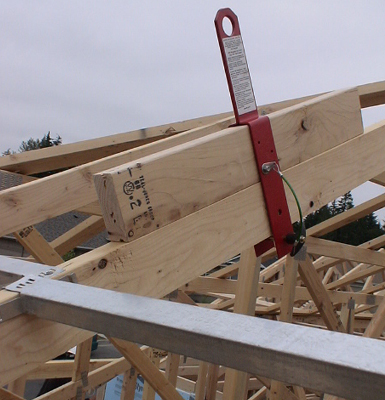

ARS Moveable Anchor

ARS Moveable Anchor
