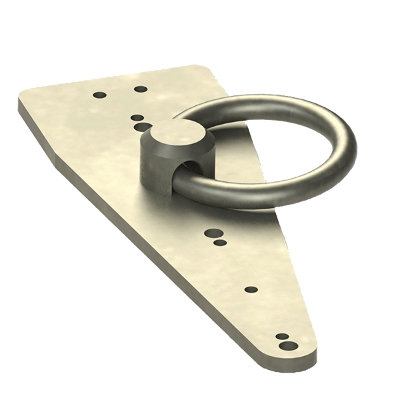

Zinc-plated steel plate with ring that attaches to wood roof structures or decking through underlying component (truss, rafter, stud) to provide fall arrest or restraint for 1 individual. Structure must be capable of supporting 5000# force.
| Phase of Construction |
| Roof shingling, floor sheathing, siding installation |
| Manufacturer’s Device Page |
| Guardian |
| Installation |

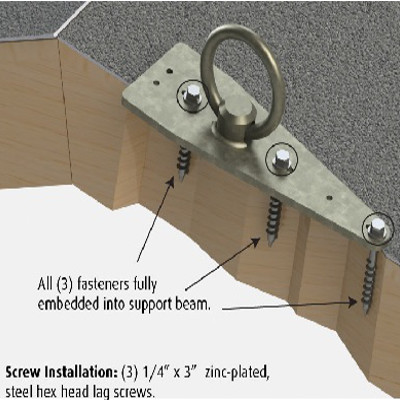

| Must be attached through plywood/CDX into roof truss or support beam (minimum of 3" thick wood substrate) with six 16d, 3" long 8 gauge nails or three 1/4" x 3" hex lag screws that must be fully embedded in substrate. New fasteners needed for each installation. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Structural member must be able to support 5000# force. Failure to do so could result in serious injury or death. |
| Manual |
| Instruction Manual |
| Vendor |
| guardianfall.com, toolup.com, wimsattdirect.com |
| Cost |
| $20-$45 |
