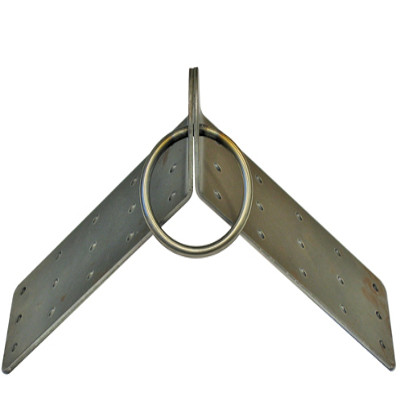

Anchor point for fall arrest/restraint for 1 person that is used at roof ridge or field.
| Phase of Construction |
| Roof shingling, floor sheathing, wall installation, window installation |
| Manufacturer’s Device Page |
| Guardian/Qualcraft |
| Installation |

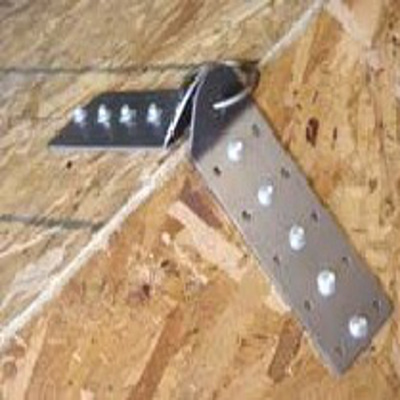

| When installing through roof sheathing into the roof truss, fill center holes with ten 3" 16d nails or 10 #12-14 2" hex head screws. If using for fall restraint (not arrest), can install through 3/4" CDX or better filling all 30 holes with provided screws. Structure must be able to support 5000# load for fall arrest. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Structural member must be able to support 5000# force. Failure to do so could result in serious injury or death. |
| Manual |
| Instruction Manual |
| Vendor |
| amazon.com, sears.com, fallprotectionpros.com, peaksupplycompany.com, creechladder.com |
| Cost |
| $50-100 |
