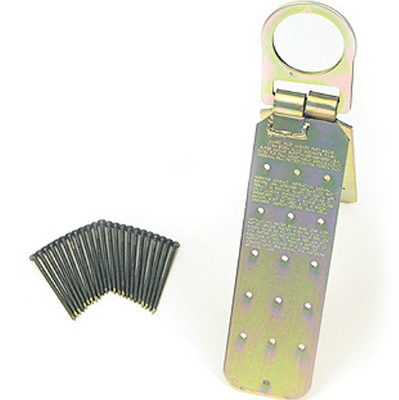

Temporary anchor designed for use on sheathed surfaces with pitch up to 20/12. D-ring hinges from side to side to provide anchorage point for 1 individual for fall arrest or restrain. Rated for 5,000 pounds.
| Phase of Construction |
| Roof shingling, floor sheathing, wall installation, window installation |
| Manufacturer’s Device Page |
| Super Anchor |
| Installation |

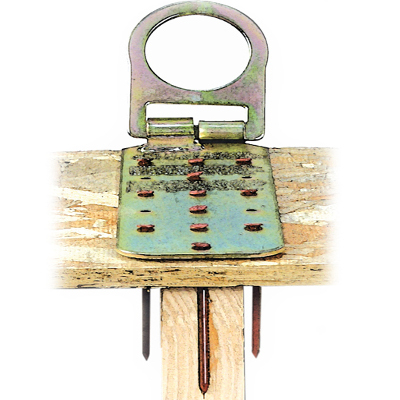

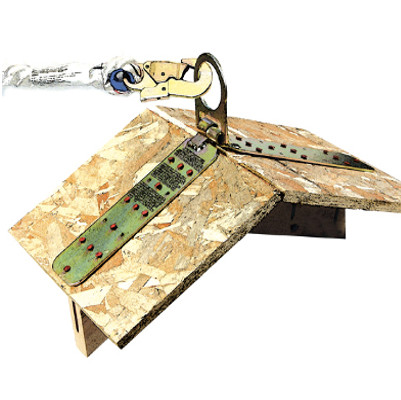

| Provided screws or sinker nails are used for fall arrest; duplex nails can be used for fall restraint. Fasteners are installed through sheathing (minimum 7/16") into center of rafter or truss on flat surfaces or sloped roofs up to 20/12 pitch, can be used at roof peak. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Structural member must be able to support 5000# force. Failure to do so could result in serious injury or death. |
| Manual |
| Instruction Manual |
| Vendor |
| Super anchor, Amazon, Fall protection pros, Peak supply company, Hardware sales |
| Cost |
| $30-36 |
