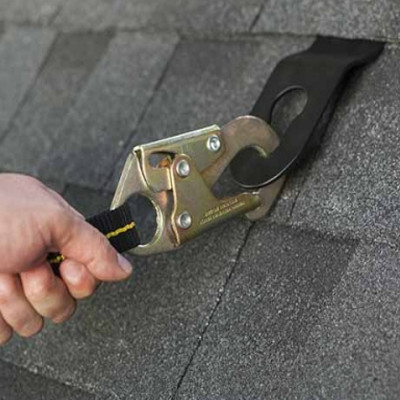

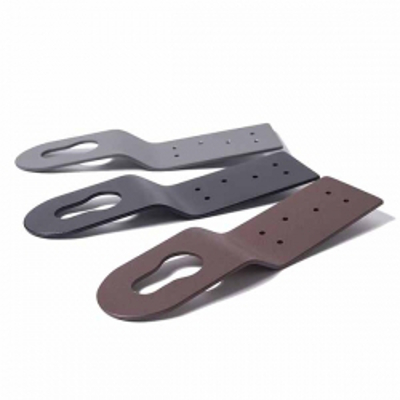

Lightweight roof anchor with key-hole design that is used for attachment of personal fall arrest/restraint system or to support additional components such as roof jack, platform stage, work bench, and guardrail. Supports 1 person maximum.
| Phase of Construction |
| Roof shingling, floor sheathing, wall installation, maintenance |
| Manufacturer’s Device Page |
| Qualcraft |
| Installation |
| Clip installed over 1/2" plywood sheathing and 3" support beam using 6 16d galvanized framing nails or 6 2 1/2" #10 exterior screws. Fasteners must embed at least 2" into sheathing over beam/truss. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Failure to do so could result in serious injury or death. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Structural member must be able to support 5000# force. Failure to do so could result in serious injury or death.See PDF. |
| Manual |
| Instruction Manual |
| Vendor |
| hitchclip.com, guardrail |
| Cost |
| $10-35 |
| Video |
| Video 1 |
