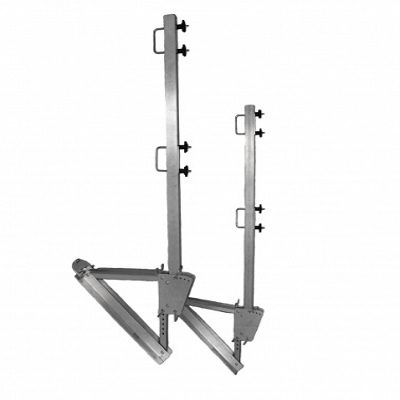

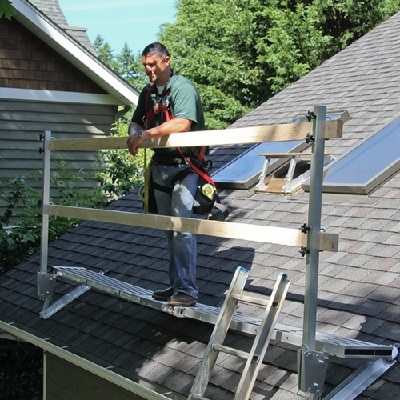

Guardrail system that fastens over the Hitchclip roof anchor to provide guardrail to protect workers at edges and roofs. 2x4 wood boards are inserted into the guardrail post.
| Phase of Construction |
| Wall installation, roof sheathing, shingling, maintenance |
| Manufacturer’s Device Page |
| Guardian Fall Protection |
| Installation |
| Clip installed over 1/2" plywood sheathing and 3" support beam using 6 16d galvanized framing nails or 6 2 1/2" #10 exterior screws. Fasteners must embed at least 2" into sheathing over beam/truss. Specific directions for installing the guardrail post and rails are not provided. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Failure to do so could result in serious injury or death. |
| Vendor |
| hitchclip.com, jlconline.com |
| Video |
| Video 1 |
