Purpose

Stainless steel anchorage point for 1 individual that attaches to I-joist roof truss or floor joist. Available in 2 sizes or custom sizes.

Phase of Construction
Floor joist installation, floor sheathing, roof shingling
Manufacturer’s Device Page
Super Anchor
Installation
Anchor slides over I-joist and filler blocks are installed on each side of I-joist with decking screws. After drilling through the blocks and I-joist, a locking bolt is attached. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Structural member must be able to support 5000# force. Failure to do so could result in serious injury or death.
Manual
Instruction Manual
Vendor
Super Anchor, safetyoutsourceservices.com, Fall Protection Solutions LLC., Ordex Supply
Cost
$32-57

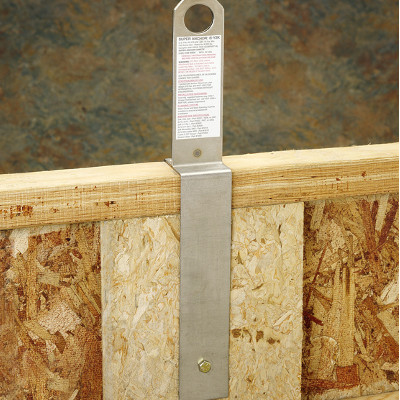

I Joist Anchor

I Joist Anchor
