Purpose

This anchor is coupled to an ARS 2x4, 2x8 or 2x12 anchor to provide permanent or temporary inverted anchorage support in attics. Used for fall arrest for 1 individual.

Phase of Construction
Attic work, maintenance
Manufacturer’s Device Page
Super Anchor
Installation
Place 5/16"x2-1/4" grade 8 attachment bolt and lock nut through the end attachment hole located on the ARS primary anchor. The secondary anchor legs will overlap the outside surface of the primary anchor legs. Installer must ensure that the primary anchor is not in use while installing secondary anchor and that the bolt is replaced if secondary anchor is removed. Structural member must be able to support 5000# force. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Structural member must be able to support 5000# force. Failure to do so could result in serious injury or death.
Manual
Instruction Manual
Vendor
Super Anchor, ordexsupply.com
Cost
$26

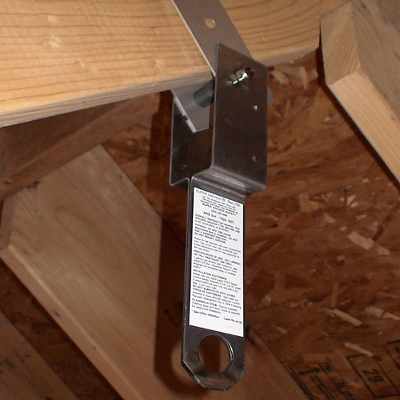

Inverted ARS Anchor

Inverted ARS Anchor
