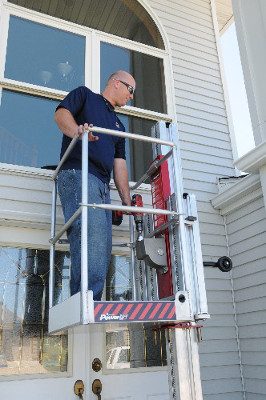

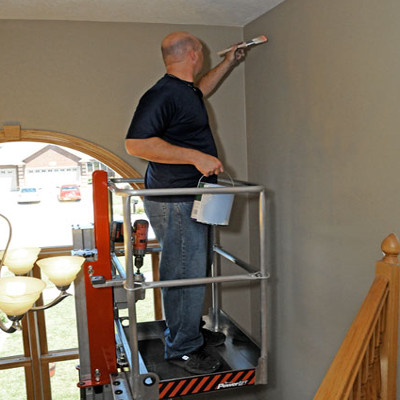

Pole-based scaffold system that is powered by a 1/2" drill. Platform systems < 24' tall can rest on side wall via V-brace; tie chain and wall anchor bracket must be used when >24' tall. Platform can be a single man basket (36" x 26"), railed work platform, or platform with work bench. Can accommodate platform lengths from 3' to 40' and the system will reach work heights of 100'. Can lift 650# at 25'/minute. Combines alloy aluminum and steel construction and an all-steel drive train used for access and leading edge fall protection.
| Phase of Construction |
| Siding, window installation, roof sheathing, shingling, roof truss installation |
| Manufacturer’s Device Page |
| Reechcraft |
| Installation |
| Coupler system for quick and easy attachment of sections. Lock levers prohibit the advancement of the platform unless they are securely locked in place. Outrigger pads are easy to adjust. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Failure to do so could result in serious injury or death. |
| Manual |
| Instruction Manual |
| Vendor |
| reechcraft.com, ebay.com, southern-tool.com, globalindustrial.com birdladder.com, associated-scaffolding.com |
| Cost |
| $4,500-5,200 |
| Video |
| Video |
