Purpose

Lightweight steel bracket and guardrail assembly to protect workers from leading edge work, unprotected side hazards and holes. Can be used on roofs with pitches between 6/12 and 12/12. 2x6" toeboards are required with these powder-coated steel system.

Phase of Construction
Wall installation, roof sheathing, shingling, maintenance
Manufacturer’s Device Page
Guardian Fall Protection
Installation
Brackets are spaced every 6' and adjusted so silver support arm contacts pitched roof surface. Fasteners are installed into every hole into sheathing and underlying truss. 8' 2x4 is used for rail (must extend 1’ past bracket) and 2x6 is secured to bracket for toe board using 16 penny nail. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Failure to do so could result in serious injury or death.
Manual
Instruction Manual
Vendor
guardianfall.com, fallprotectionpros.com, menards.com, associated-scaffolding.com, dynamitetoolco.com
Cost
$80-130

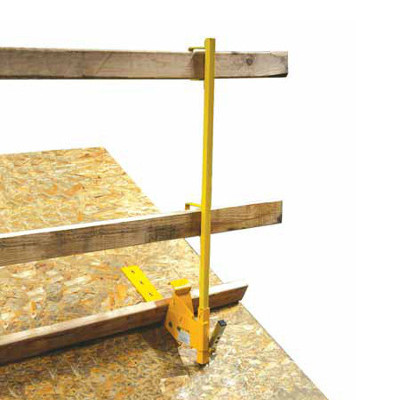

Residential Guardrail System
