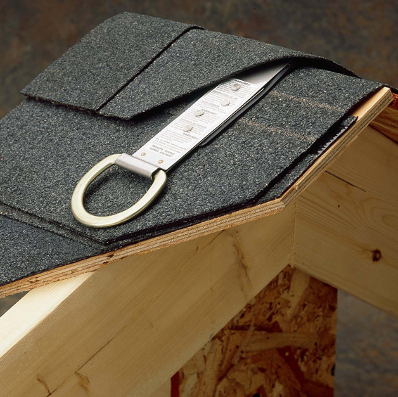

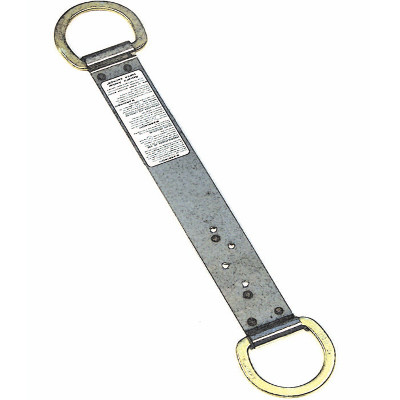

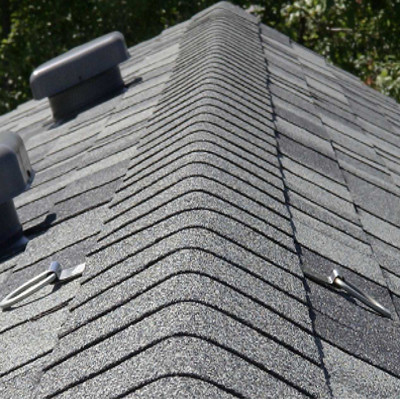

Provides anchorage point for fall protection systems for 1 individual. Can be applied to asphalt, wood, and metal roofs with a design that blends into roofing or can be painted to match roofing. Similar model available for tile roofs.
| Phase of Construction |
| Roof sheathing, floor sheathing, wall installation, window installation |
| Manufacturer’s Device Page |
| Super Anchor |
| Installation |
| Center anchor over 2x4/joist/truss covered with 7/16"plywood/OSB sheathing or into solid decking that is at least 1-1/2” thick. Do Not install anchors directly onto top chords. Attached 8 3-1/4" spiral fasteners or 10 #12 2-7/8" hex screws. Framing must be capable of supporting 5,000# load or 2 times intended fall protection load. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Structural member must be able to support 5000# force. Failure to do so could result in serious injury or death. |
| Manual |
| Instruction Manual |
| Vendor |
| Super Anchor, Amazon, Fall protection pros, Peak Supply Company, Best Materials Ordex Supply |
| Cost |
| $28-46 |
