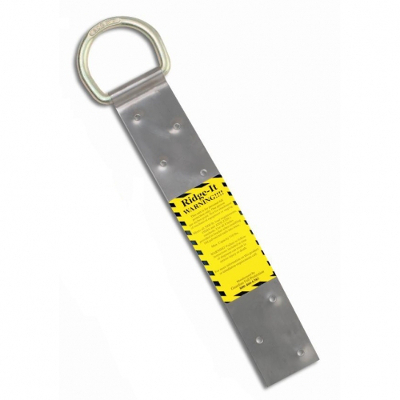

Provides fall arrest anchorage point for 1 individual. For permanent use on wood under tile roofing. Stainless steel, 18 in. long with 1 D-ring
| Phase of Construction |
| Shingling, roof sheathing, siding, maintenance |
| Manufacturer’s Device Page |
| Guardian Fall Protection, Qualcraft |
| Installation |
| Must be installed perpendicular to roof peak into structural member capable of withstanding 5000# load with D-ring facing away from peak. Slightly bend anchor at it's center and install all 12 nails (provided) into the fastener locations on the anchor. Ensure ridge cap/roof tiling are fully installed/reinstalled (for retrofit) according to manufacturer's instructions. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Structural member must be able to support 5000# force. Failure to do so could result in serious injury or death. |
| Manual |
| Instruction Manual |
| Vendor |
| Amazon, guardianfall.com, fallprotectionpros.com, geotechsupply.com, carsonsafety.com, sentrysafetysupply.com |
| Cost |
| $25-35 |
