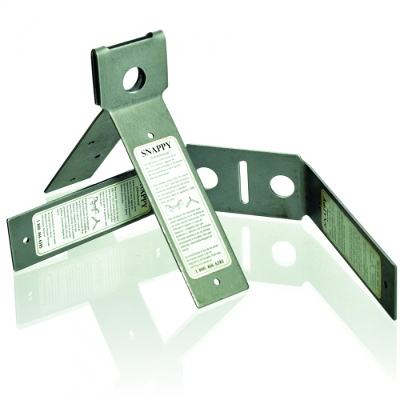

Disposable anchorage connector that fits 1/12 to 12/12 roof pitch and provides a fall protection anchorage point for 1 individual. Structural member must be able to support 5000# force for fall arrest and 1,000# for fall restraint.
| Phase of Construction |
| Roof shingling, siding installation |
| Manufacturer’s Device Page |
| Guardian/ Qualcraft |
| Installation |

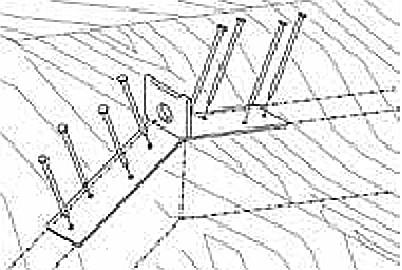

| Bend anchor to fit over roof ridge. Install 8 3.5" 16 penny nails through sheathing at least 3/4" thick and roof truss below. Only for temporary use, must be disposed upon removal from first installation location. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Structural member must be able to support 5000# force. Failure to do so could result in serious injury or death. |
| Manual |
| Instruction Manual |
| Vendor |
| guardianfall.com, amazon.com, fallprotectionpros.com buymbs.com harnessland.com simplifiedsafety.com esafetyinc.com |
| Cost |
| $50-65 for 8 pack |
