Purpose

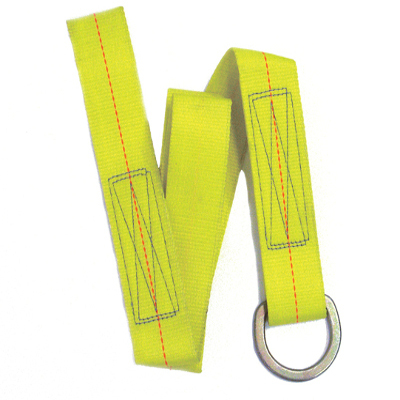

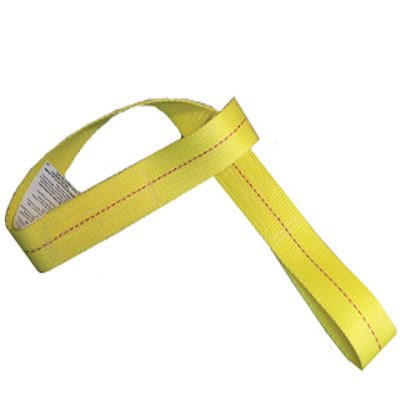

Webbing strap for one time use for personal fall arrest anchorage for 1 individual; available in 3', 4', 5' or 6' lengths. Strap is wrapped around truss, top plate, or joist and nailed in place. Structural member must be able to support 5000# force.

Phase of Construction
Roof sheathing, truss installation, floor joist installation, window installation, siding
Manufacturer’s Device Page
Super Anchor
Installation

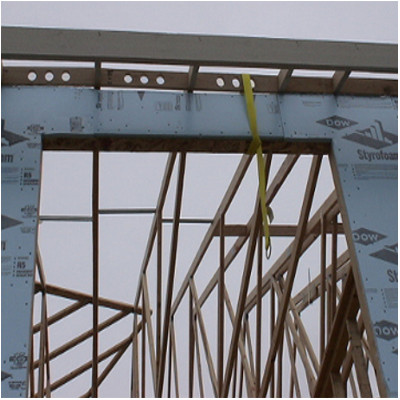

Strap is wrapped around supporting member and nailed into place within 2" from stitch pattern. Since strap can move along member it is fastened to, it must be blocked into place with wood members as the 1 nail does not adequately secure the strap in place. Use with shock absorbing lanyard is recommended. Strap is discarded after one time use. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Structural member must be able to support 5000# force. Failure to do so could result in serious injury or death.
Manual
Instruction Manual
Vendor
Super Anchor, peaksupplycompany.com
Cost
$6-15
