Purpose

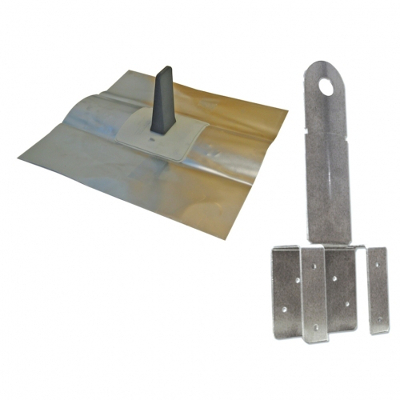

Anchor attaches to truss, I-joist, beam, or joist to provide fall arrest or restraint for 1 individual. Complete kit includes aluminum flashing and Luran-S cap to protect anchorage from weather.

Phase of Construction
Roof shingling, truss installation, roof sheathing, maintenance
Manufacturer’s Device Page
Guardian Fall Protection, Qualcraft
Installation

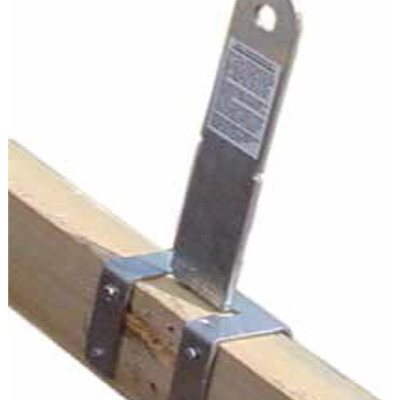

Install 8 nails through holes in anchor into 2x structural member, can be installed on truss while on the ground. Roof sheathing is layed over the anchor, flashing is installed, and weather cap is snapped over anchor stem. Structure must be capable of supporting 5,000 load. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Structural member must be able to support 5000# force. Failure to do so could result in serious injury or death.
Manual
Instruction Manual
Vendor
guardianfall.com, fallprotectionpros.com, amazon.com, industrialproducts.com simplifiedsafety.com sentrysafetysupply.com
Cost
$48-$70





T-T Boss Anchor Kit

T-T Boss Anchor Kit

T-T Boss Anchor Kit

T-T Boss Anchor
