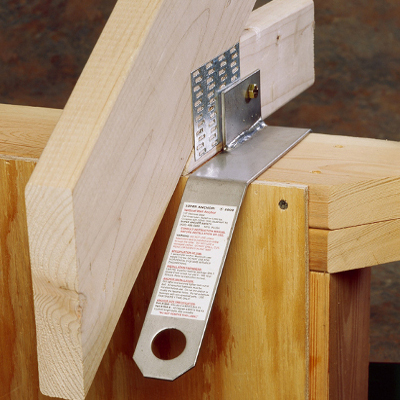

Anchor extends over the top plate of walls (capable of withstanding 5000# forces) to provide permanent or temporary anchorage fall protection for 1 individual. Two sizes available for roof pitches greater and less than 30 degrees.
| Phase of Construction |
| Siding, window installation, maintenance |
| Manufacturer’s Device Page |
| Super Anchor |
| Installation |

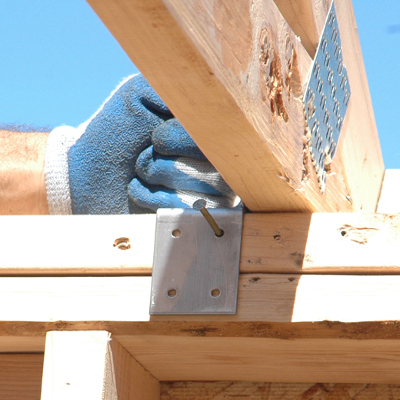

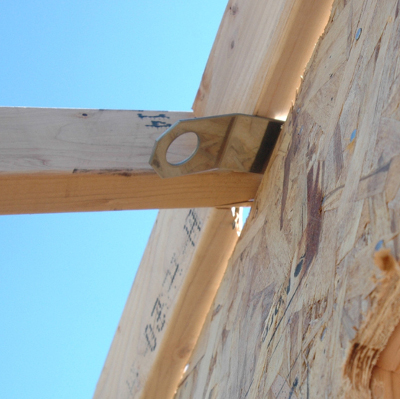

| Anchor is attached to inside of top plate with 4 sinkers and to adjacent truss, rafter or joist with bolt and locking nut. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Structural member must be able to support 5000# force. Failure to do so could result in serious injury or death. |
| Manual |
| Instruction Manual |
| Vendor |
| Super Anchor, Amazon, Fall protection pros, Peak Supply Company, Toolup fallprotectionpros.com |
| Cost |
| $33-47 |
