Provides anchorage point for fall arrest or restraint of 1 individual under the eave of roofs that are 7/12 pitch or less.
Phase of Construction |
External wall construction, window installation, siding, painting |
Manufacturer’s Device Page |
Guardian Fall Protection, Qualcraft |
Installation |

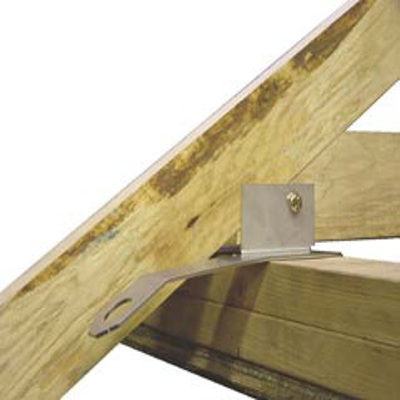

Install 8 nails through holes in anchor into 2x structural member, can be installed on truss while on the ground. Roof sheathing is layed over the anchor, flashing is installed, and weather cap is snapped over anchor stem. Structure must be capable of supporting 5,000 load. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Structural member must be able to support 5000# force. Failure to do so could result in serious injury or death. |
Manual |
Instruction Manual |
Vendor |
guardianfall.com, fallprotectionpros.com, amazon.com, peaksupplycompany.com |
Cost |
$27-40 |
