Purpose

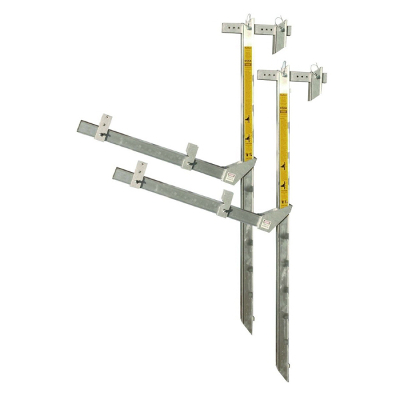

Aluminum scaffold system that hangs from interior or exterior studded walls. Rated for 2 workers plus 75# for every 8' section. Planking, 2x4 lumber for handrails, and 16D nails are not provided. When working over 6' handrails, end gate and toe boards must be used. Minimum of 2 units needed for the system.

Phase of Construction
Floor joist installation, roof truss installation, window installation, roof sheathing, shingling
Manufacturer’s Device Page
Norguard
Installation

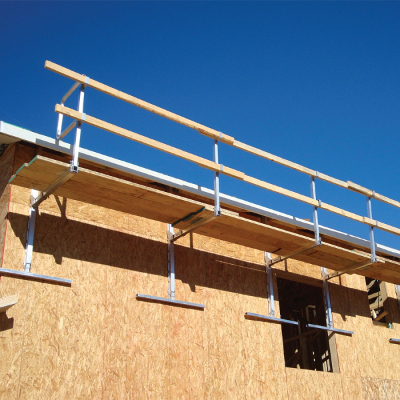

Walls must be adequately braced to support the system. Adjust top plate bracket to fit wall width and place over top of wall/structure. Secure the base of the vertical beam into the wall using 16D nails to prevent undesired movement; if resting on unsheathed studs a 2x4 board is attached to distribute load between two studs. Approved planking is placed on horizontal beams between brackets and secured using plank bracket. Attach handrail post and secure 2x4 top and midrails and toe board using 16D nails when working at heights requiring fall protection. Warning: Users must strictly adhere to the manufacturer’s inspection, installation, maintenance and use directions; and must follow local, state and federal safety regulations. Failure to do so could result in serious injury or death.
Manual
Instruction Manual
Vendor
amazon.com, contractorstools.com, dynamitetoolco.com
Cost
$450-650
WallWalker

WallWalker

WallWalker

WallWalker
